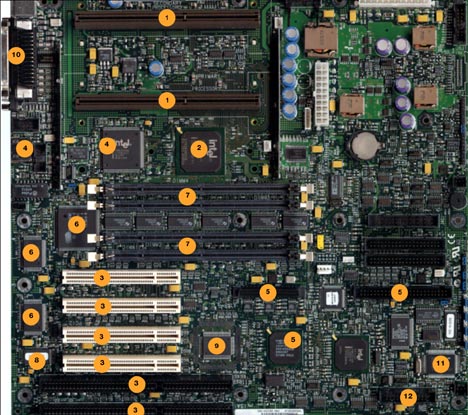

1

Dual processing support for Pentium® II processor
• Provides expandability and greater processing for demanding server applications
• Pentium II processor provides the new 100-MHz system bus for greater throughput

2

Intel® 440BX chipset
• Incorporates Intel®'s lates technology supporting up to 1 GB 100-MHz PC/100 SDRAM memory and two channels for Ultra DMA/33IDE devices

3

Three PCI, one ISA, one shared PCI/ISA slots
• Ample room for custom configurations of peripherals and add-in cards

4

Integrated 100 MB LAN solution
• Intel® 82558 EtherExpress™ PRO100+LAN Controller with RJ-45 connector provides network-ready connectivity

5

Integrated Dual Channel Ultra/Wide SCSI controller with wide and narrow connectors
• Integrated design allows up to 15 devices/channel offering expandability, reliability, and cost savings
• Wide connector provided for high-performance peripherals and narrow connector for legacy SCSI devices

6

Integrated graphics
• On-board Cirrus Logic GD5480 with 2 MB SGRAM

7

Four 168-pin SDRAM DIMM sockets
• Flexibility to support up to 512 MB unbuffered or 1 GB registered PC/100 100-MHz SDRAM for superior system performance

8

8 MB secure flash memory (DMI 2.0 enabled)
• Prevents code other than the Intel® BIOS from writing to the Flash. Enables hardware monitoring

9

Super I/O
• National 87309 Super I?O Device provides floppy disk controller, keyboard and mouse controllers, two enhanced COM ports, full IEEE 1284 parallel port and support for power management

10

Emergency Management Port
• An extension of server management, allowing remote power up, power down, reboot and access to event logs and diagnostic information via the COM-2 port
• Server may be accessed by another PC either serial-serial or via and external modem (modem not included)

11

Advanced Server Management Instrumentation
• Real-time monitoring and diagnostics under the control of the baseboard management controller (BMC) increases reliability and server availability

12

Connector for Intel® LANDesk® Server Manager Pro card
• Eliminates the need for an additional Intel®ligent power module
• Allows remote capabilities for full server management and monitoring via PC card modem
• Enables easy integration
