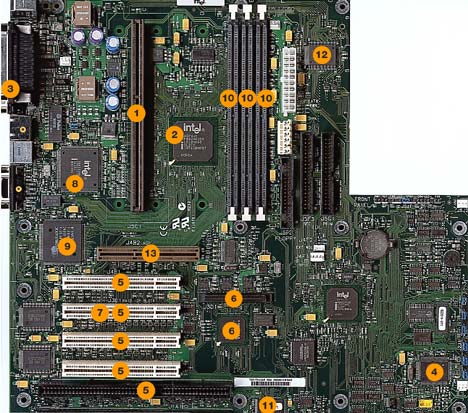

1
|
Supports latest Intel® Pentium™ II / III processors
Pentium II / III processors provide up to 100 MHz system bus for greater throughput.
|
|
2
|
Advanced Intel 440X AGPset
Supports Incorporates Intel's latest technology with support from SDRAM memory.
|
|
3
|
Emergency Management Port
An extension of server management allows remote power-up, power-down, reboot and access to event logs and diagnostic information via the COM-2 port.
|
|
4
|
Advanced Server Management Instrumentation
Real-time monitoring and diagnostic under the control of the baseboard management controller (BMC increases reliability and server availability.
|
|
5
|
Three PCI, one ISA and one shared PCI/ISA slots
Ample room for custom configurations of peripherals and add-in cars.
|
|
6
|
Integrated Single-Channel Ultra-SCSI Controller with Wide Connector
Expand Integrated design allows up to 15 devices offering expandability, reliability, and cost seavings.
|
|
7
|
Available Low-cost RAID Solutions
Offers Intelligent RAID controllers support Level 0, 1 and 5 RAID, utilizing on-board SCSI controllers.
|
|
8
|
Integrated 100 MB LAN Solution
Intel 82558 EtherExpress™ PRO100+ LAN Controller with RJ-45 connector provides network-ready connectivity.
|
|
9
|
Integrated Graphics
On-board Cirrus Logic® GD5480 with 2MB SGRAM.
|
| 10 |
Three 168-pin SDRAM DIMM Sockets
Flexibility to support up to 384-MB unbuffered or 768-MB registered SDRAM for superior system performance.
|
| 11 |
512 KB Secure Flash Memory (DMI 2.0 Enabled)
Prevents code other than the INtel BIOS from writing to the Flash. Enables hardware monitoring. |
| 12 |
Super I/O
National® 87309 Super I/O Device provides floppy disk controller, keyboard, and mouse controllers, two enhanced COM ports, full IEEE 1284 parallel port and support for power management. |
| 13 |
AGP Port
Provides option of high-powered video solutions with max transer of 533 MB/s. |
|
Additional Benefits
Reliability through rigorous server operating system and hardware testing in five Intel server laboratories
Error Checking and Correction (ECC) memory support - guards against data corruption, corrects single-bit errors, detects double-bit errors.
|
